Carpet Tile Layout Drawing Checklist Before Installation

Pei Xiaochuan✓

Chairman, UNIJOY · 15 years in carpet tile·27 August 2026·5 min read

Technically reviewed by Pei Xiaochuan, Chairman

TL;DR

A carpet tile layout drawing should identify the exact product and module, permitted installation method, directional arrows, setting-out origin and reference lines, zone boundaries, doorways, transitions, perimeter cuts, fixed interfaces, drawing revision and named approvals. Check those items against the current product instructions and the actual site before installation. A drawing coordinates intent; it does not guarantee pattern matching, colour, flatness, quantities or the finished result.

Architect, installer and specifier reviewing a carpet tile layout drawing with loose samples — Editorial visual for drawing-review context only; it does not depict a UNIJOY project, approved drawing, measured site or installed result.

The direct answer: approve a controlled drawing, not a verbal layout

This checklist helps designers, installers and specifiers turn a layout idea into a controlled pre-installation record. It does not prescribe one universal starting point, minimum cut, waste factor, tile direction or field tolerance. Product instructions, room geometry and verified site conditions still govern the project decision.

Open pattern resources · Read the carpet tile pattern-matching guide

What the layout drawing should record

Drawing field	Record or check	Evidence boundary
Product and module	State the UNIJOY series, exact style/code, colourway, module size/shape, backing if relevant and approved sample reference.	A collection image or generic square on a plan does not identify the proposed tile or its permitted installation method.
Direction and pattern	Show the named method and tile-arrow orientation for every zone; distinguish monolithic, quarter-turn, ashlar, brick, herringbone or product-specific direction only when current instructions permit it.	A familiar pattern name does not prove that it is approved for the selected product or will produce a seamless visual.
Setting-out control	Mark the origin, primary and perpendicular reference lines, working sequence, control dimensions and how site measurements will be verified.	A room centreline alone does not establish balanced cuts, alignment through several rooms or suitability at every interface.
Edges and interfaces	Draw doors, thresholds, columns, curved edges, stairs, access panels, floor boxes, transitions, inserts and perimeter-cut intent.	A typical detail does not resolve an unmeasured threshold, moving joint, access requirement or changed site condition.
Zones and approval	Give each zone, change of direction, revision, open item and approval a clear identifier, date, owner and status.	An emailed image or marked-up print cannot control later revisions unless the accepted version and unresolved items are recorded.

Conceptual drawing-control flow: an issued layout coordinates verified inputs and approvals; it is not a promise of the installed appearance.

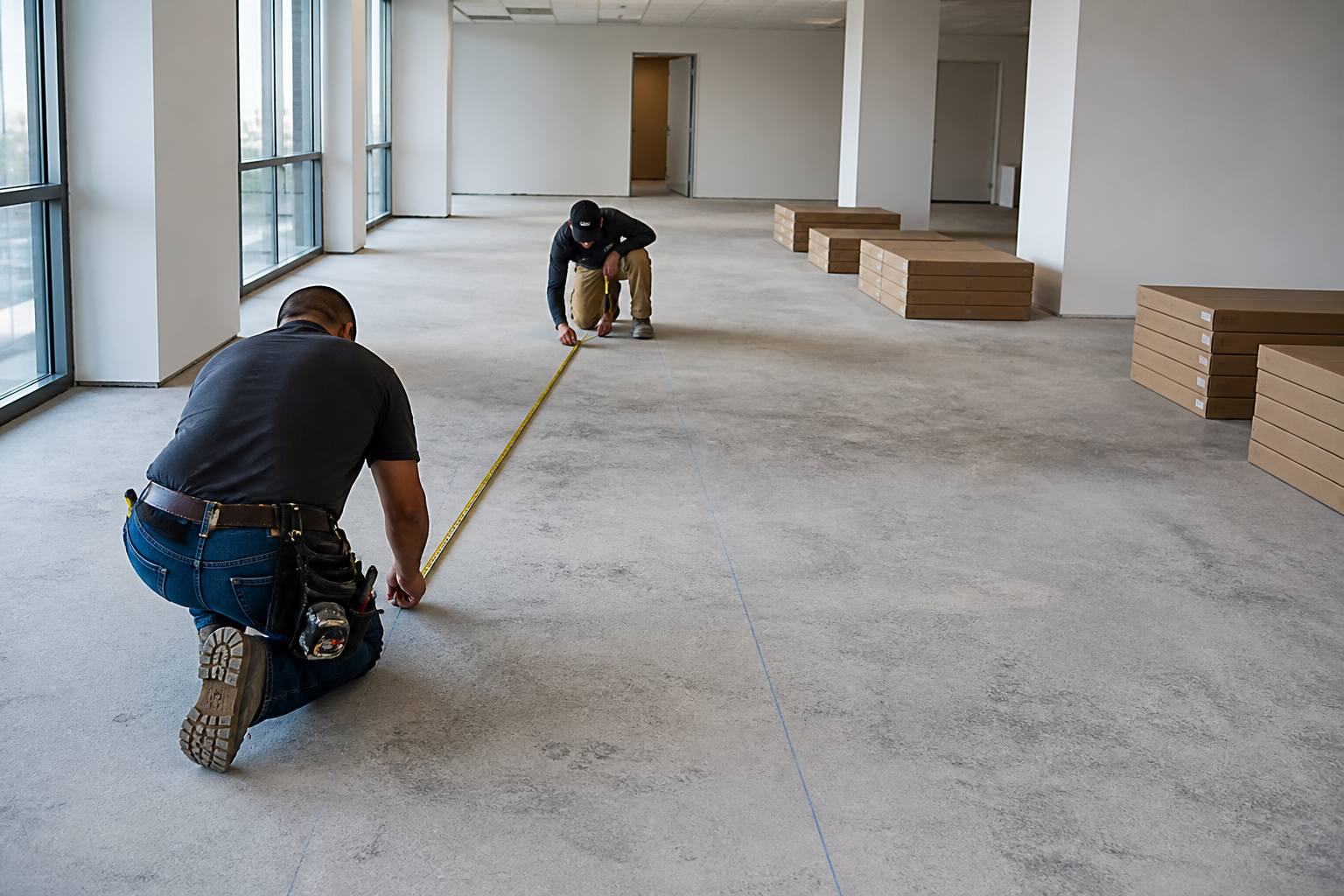

Installers establishing reference lines on an exposed commercial floor before carpet tile installation — Editorial visual; the lines and site are not presented as approved UNIJOY setting-out information or evidence of a finished result.

What layout wording cannot guarantee

Wording	Evidence to request	Do not infer
“Quarter-turn approved”	Exact product identity, current permitted-method document, zone plan, arrow legend and drawing revision.	That every tile, plank or backing may be quarter-turned, or that shade variation will disappear.
“Seamless layout”	Physical sample or mock-up brief, viewing conditions, product direction and agreed visual acceptance record.	Perfect pattern matching, invisible joints, one colour appearance or an installed outcome.
“Centred in the room”	Verified room dimensions, fixed interfaces, origin and perimeter-cut study.	Balanced cuts at every wall, doorway, column or connected room.
“Installer to set out on site”	Drawing responsibility, decision limits, escalation points and named approval before the field proceeds.	Permission to redesign zones, transitions, arrow direction or visual intent without review.
“Pattern file issued”	File name/version, applicable UNIJOY product, scale or reference dimensions and coordination against current site information.	Quantity, waste, installation compatibility, substrate acceptance or final appearance.

Designer and flooring supervisor reviewing loose carpet tile samples at a doorway transition — Editorial visual; it illustrates an interface question, not a UNIJOY project, approved transition or installation outcome.

A drawing-review checklist before installation

Identify the exact UNIJOY series, style/code, colourway and module before drawing the field.
Obtain the current permitted installation direction and pattern resource for that exact product; do not infer from another collection.
Overlay verified room dimensions, door swings, thresholds, columns, floor boxes, access panels, joints and finish transitions.
Choose and dimension the setting-out origin and perpendicular controls; study perimeter cuts and cross-room alignment before approval.
Label every zone, arrow direction, pattern change, inset, transition and open interface; add a legend that can be read on site.
Run a drawing review with design, installation and project-technical owners; record revision, comments, decision and unresolved holds.
Issue only the controlled drawing and current resource. Stop and escalate when site geometry or product information no longer matches it.

Download the pattern resource for the identified UNIJOY option, then send the controlled layout and open interface list for review.

Open pattern resources · Send a layout enquiry

Frequently asked questions

What should a carpet tile layout drawing show first?

Start with the exact product, style/code, colourway, module and current permitted installation direction. Then connect that identity to the drawing revision, legend, zones and approved sample reference.

Should carpet tile always start in the centre of a room?

No universal starting point fits every room. The origin should be selected from verified geometry, product direction, perimeter cuts, doors, transitions and connected zones, then recorded and approved for the project.

Does a layout drawing prove that carpet tiles will pattern-match?

No. A drawing controls module position and direction. Modular repeats, pile direction, lighting, samples, batch information and site execution can still affect appearance, so visual expectations need their own review record.

What happens when the site no longer matches the approved drawing?

Stop the affected area, mark the discrepancy and obtain a controlled revision or written decision from the named design and installation authorities. Do not hide a geometry conflict in perimeter cuts or a field change.
