Carpet Tile Layout Patterns: Monolithic, Quarter-Turn, Ashlar and Herringbone
TL;DR
The arrow on the back of a carpet tile marks the pile direction, and pile direction decides how light reflects off the floor — which is why the same tile can look lighter or darker depending on which way it is laid. That single fact drives the layout choice. Monolithic (all arrows the same way) gives a broadloom look but shows any shading or dye-lot difference most. Quarter-turn (each tile rotated 90°) is the default because it averages the light out and masks lot variation. Ashlar and brick offset the joints for a linear, plank-like look. Herringbone gives the strongest design impact but demands a flatter subfloor, careful setting-out and more cutting — so more waste. Choose the pattern by what you want the floor to hide or show.
1. Why the arrow on the back matters
Turn a carpet tile over and you will find an arrow printed on the back. It marks the pile direction — the way the fibres lean — and it is the single most important thing to understand before choosing a layout, because pile direction controls how light reflects off the floor.

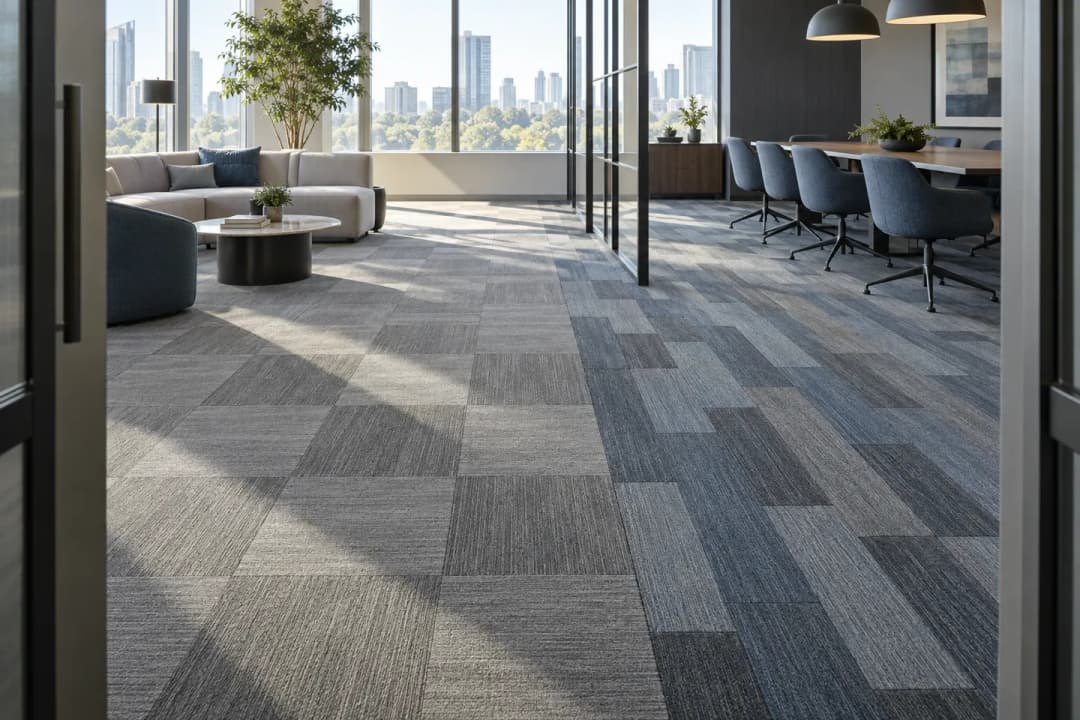

Lean the pile toward a light source and the floor reads lighter; lean it away and the same tile reads darker. That is why two identical tiles can look like two different colours side by side — nothing has changed but their orientation.
2. Five ways to lay the same tile

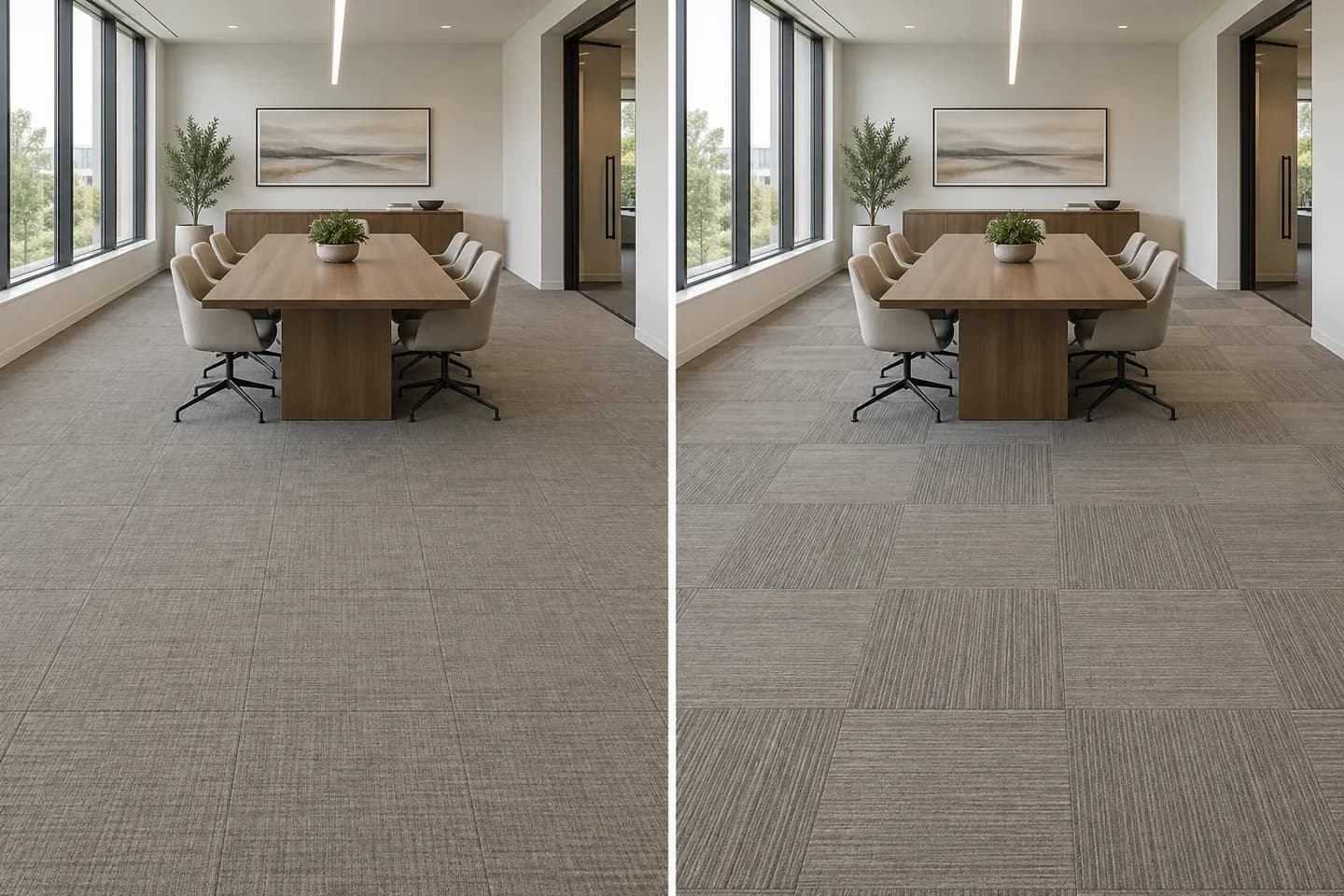

Every pattern below is the same tile — only the orientation and offset change. The arrows show pile direction.
3. What each pattern hides or shows
Because the pattern controls how light plays across the floor, it also controls how much it forgives. This is the table to keep:
| Pattern | Look | Hides shading / dye-lot? | Waste & subfloor |
|---|---|---|---|
| Monolithic | Broadloom, directional sheen | No — shows it most | Lowest waste; standard subfloor |
| Quarter-turn | Even, textured field | Yes — the best at it | Lowest waste; standard subfloor |
| Ashlar | Linear, plank-like columns | Partly | Slightly more perimeter cutting |
| Brick | Linear, running-bond rows | Partly | Slightly more perimeter cutting |
| Herringbone | Strong angled, high impact | Depends on setting-out | Highest waste; needs a flatter subfloor |
The everyday choice comes down to two questions. Do you want the floor to read as a single quiet surface, or to make a statement? And how confident are you in the subfloor and the dye-lot consistency? Quarter-turn is the safe default precisely because it answers both conservatively.
4. Herringbone’s extra demands
Herringbone earns its own section because it is the pattern most likely to go wrong on site. Laid at an angle with tiles or planks meeting point-to-point, it magnifies every imperfection the straight grids forgive.
- A flatter subfloor. Angled joints telegraph any dip or hump far more than a straight grid, so surface preparation has to be better.
- Precise setting-out. The whole field is built from accurate guidelines; a small error at the start compounds across the room.
- More cutting, more waste. The angled perimeter means many cut tiles and more offcuts — typically higher overage than a straight grid (on the order of 10–15% more, though it varies by room shape and tile size, so confirm the figure with the manufacturer).
- Plank formats suit it best. Herringbone reads best in plank tiles (for example 25×100) rather than 50×50 squares.
5. Choosing your pattern
- Want an even, forgiving floor? Quarter-turn. It hides shading and dye-lot variation and wastes the least material.
- Want a broadloom, seamless look? Monolithic — but specify tight dye-lot control, because it shows any variation.

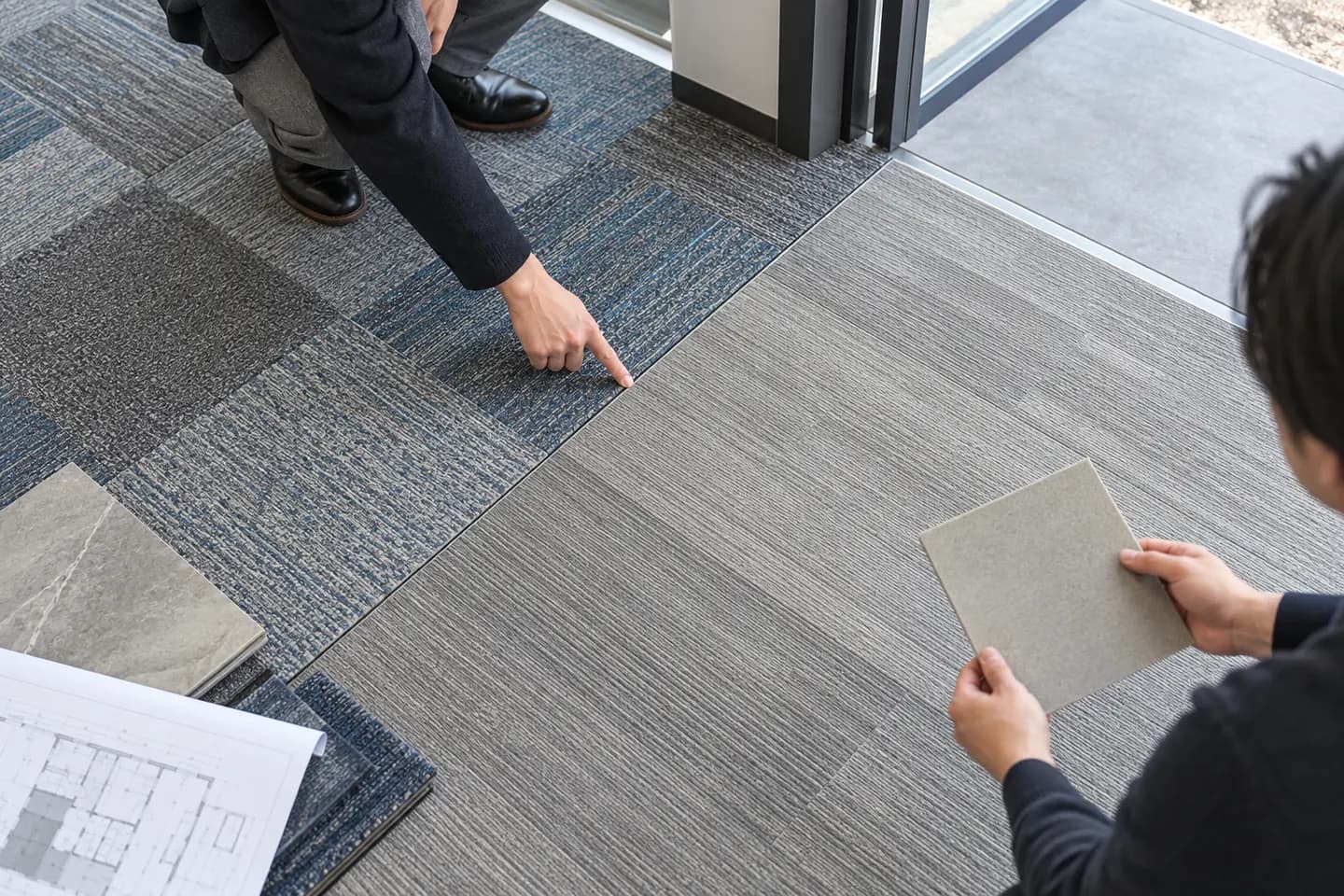

- Want linear direction or gentle wayfinding? Ashlar or brick, ideally in a plank format.
- Want a design statement? Herringbone — and budget for a flatter subfloor, careful setting-out and extra material.
- Always check the tile’s datasheet for its recommended method, and download the pattern files to plan the layout before ordering.
The pattern is not decoration added at the end — it is a decision about what the floor reveals and what it forgives, made the moment you read the arrow on the back of the tile.
Frequently asked questions
What does the arrow on the back of a carpet tile mean?
It marks the pile direction — the way the fibres lean. Because light reflects off the pile differently depending on which way it leans, two identical tiles can look lighter or darker side by side purely because of their orientation. The arrow lets the installer control that effect deliberately rather than leaving it to chance.
What is the most common carpet tile layout?
Quarter-turn — each tile rotated 90° from its neighbour. It is the default for a reason: rotating the pile direction in every tile averages out the light reflection, so the floor reads evenly and any subtle shading or dye-lot difference between tiles is masked. Monolithic (all arrows the same way) is the main alternative when a directional, broadloom look is wanted.
Is herringbone harder to install?
Yes. Herringbone is laid at an angle with tiles or planks meeting point-to-point, so it is far less forgiving of an uneven subfloor, demands precise setting-out from accurate guidelines, and involves cutting many perimeter tiles — which means more offcuts and higher waste than a straight grid. Budget extra material and allow for a flatter, better-prepared subfloor.
Does the layout pattern change how much material I need?
It can. A straight monolithic or quarter-turn grid has the lowest cutting waste. Offset patterns (ashlar, brick) add a little at the perimeter, and angled patterns (herringbone) add the most because of the extra perimeter cuts. Confirm the recommended overage with the manufacturer for the specific tile and pattern rather than assuming a flat figure.
Can any tile be laid in any pattern?
Not always. Some tiles are designed as non-directional and can be laid random or monolithic freely; directional and cut-pile tiles have a recommended method on their technical datasheet, and plank formats suit ashlar, brick and herringbone better than 50×50 squares. Always check the datasheet for the specific collection before committing to a pattern.
